\(4.3.\)Machine Language

1.Background knowledge of Hack Computer

  \(a.\)Hardware

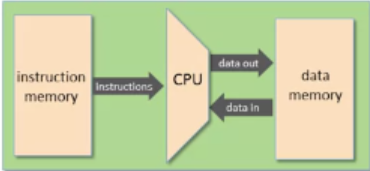

• Data memory(RAM): It is a sequence of 16-bit values.And each of these values is going to be stored in a memory register
• Instruction memory(ROM): It is a separate memory space that is also a sequence of 16 bit values.
• CPU: It is a device which is capable of manipulating 16 bit values using mostly the ALU which resides inside the CPU.
• Instruction buses, data buses, address buses: It enables us to move data from one place to another.

  The Hack machine language recognizes three registers:

• D holds a 16-bit value
• A holds a 16-bit value
• M represents the 16-bit RAM register addressed by A

  \(b.\)Language

• The Hack machine language includes:

  • 16-bit A-instructions
  • 16-bit C-instructions

  \(c.\)Register

  The hack computer recognizes three registers:

1. D register: It holds a 16-bit data which represent a piece of data.
2. A register: It holds a 16-bit data which represent either a data value or an address.
3. M register. It is called selected memory register.

2.Syntax

  \(a.\)A instruction

• Syntax: @value, value is either:

  • a non-negative decimal constant or
  • a symbol referring to such a constant

• Semantics:

  1. Sets the A register to value
  2. Side effect: RAM[A]becomes the selected RAM register.

• We always need A instruction before we operate on the memory.

  \(e.g.\)

//set RAM[100] to -1
@100 //A = 100
M = -1 //RAM[100] = -1, M denotes register number 100 in the memory unit

####   \(b.\)C instruction

• syntax:`dest=comp; jump.

• comp contains:0, 1, -1, D, A, -D, !A, D-A, D+1, D-M, etc.

• dest: We have 8 possible destination:null, D, M, MD, A, AM, AD, AMD(M refers to RAM)

  • null means we don't want to to store the results of a computation at all.
  • We can store the result in RAM register or D-register and simultaneously both in M and in D. That is, we can simultaneously in more than one containers, and the programmer is free to use any he wants.
  • jump: null, JGT, JEQ, JGE, JLT, JNE, JLE,JMP. They always compare the result of the computation to 0. And if (comp jump 0) jumps to execute the instruction in RAM[A].

  • If we want to do unconditional jump, we do 0; JMP.

• Semantics:

  1. Compute the value of comp
  2. Stores the result in dest:
  3. If the Boolean expression (comp jump B)is true,
  4. jumps to execute the instruction stored in ROM[A].

  \(e.g.\)

//if (D-1==0) jump to execute the instruction stored in ROM[56]
@56
D-1; JEQ
